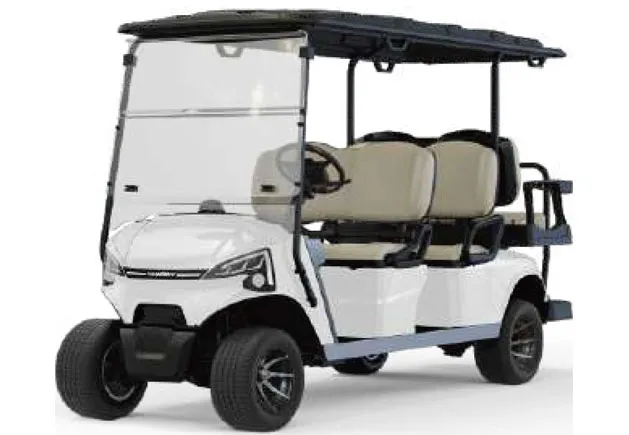

WSM JX4+2 electric vehicle – front three-quarter view, bench seats, roof, windscreen, studio background

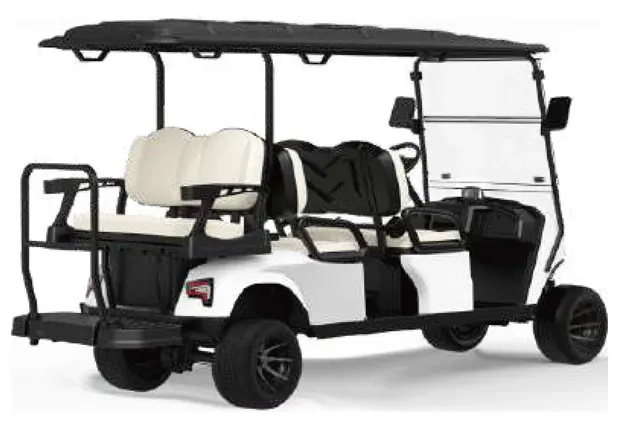

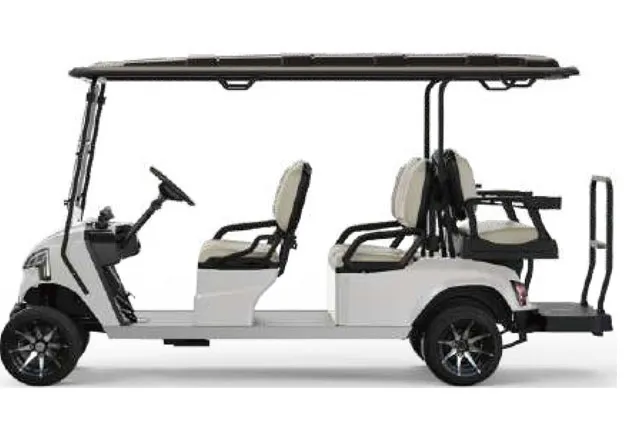

WSM JX4+2 electric vehicle – front three-quarter view, bench seats, roof, windscreen, studio backgroundWSM JX4+2 electric vehicle – side view, six-seater golf cart with roof, against a white backgroundWSM JX4+2 electric vehicle – rear three-quarter view, six-seater with roof, white backgroundWSM JX4+2 electric vehicle – front three-quarter view, 4+2 bench seats, roof, windscreen, load bed at the rear
Golf cart · Shuttles

JX4+2

€11,990

The JX4+2 is an electric vehicle from WSM with a 48-volt AC motor and lithium batteries; the built-in charger comes with a charge indicator, fault diagnosis and an automatic immobiliser while charging. The steel chassis carries bumpers front and rear, the front wheels run on independent double wishbones, and leaf springs with shock absorbers do the work at the back. Equipment includes a plastic roof, headlights with daytime running lights, LED lamps, indicators, reversing alarm, seat belts, rear-view mirrors, horn, 7-inch display, USB socket, cup holders and lockable storage compartments at the front.

WSM JX4+2 electric vehicle (105 Ah) with 6 seats, long-life 105 Ah lithium batteries for longer running times and an AC motor

Features

  • 5 kW AC electric motor, 48 volt
  • Lithium batteries 48 volt, 105 Ah
  • Built-in fast charger 48 V 20 A with immobiliser while charging
  • Hydraulic dual-circuit braking system: disc brakes at the front, drum brakes at the rear
  • Headlights with daytime running lights, LED lamps front and rear, indicators
  • 7-inch display, battery level indicator, USB socket
  • Lockable storage compartments at the front, cup holders, stowage lockers
  • Top speed 25 km/h
Range
40 km
Speed
25 km/h
Unladen weight
590 kg
Data sheet (PDF)
Enquire now

Matching accessories

1 item fit the JX4+2.

Prices incl. 19 % VAT, plus freight. Not sure which attachment fits? Just ask us — we'll tell you what makes sense on your machine.

Technical data

Engine5 kW AC electric motor, 48 volt
Control unitMarxon 450A controller with diagnostic port for quick fault finding
TransmissionTough rear-wheel drive through a gearbox with differential, gear drive running in an oil bath
BatteriesLithium 48 volt, 105 AH
ChargerBuilt-in professional fast charger 48V 20A with charge indicator and fault analysis, automatic immobiliser while charging, 220 volt connection

FrameSturdy steel chassis with bumpers front and rear
BodyworkHard-wearing plastic
SteeringSelf-adjusting rack-and-pinion steering, permanently lubricated
Front suspensionIndependent suspension with double wishbones and shock absorbers
Rear suspensionLeaf springs and shock absorbers
BrakesHydraulic dual-circuit braking system, disc brakes at the front, drum brake at the rear, mechanical foot-operated parking brake
SeatsHigh-quality comfort bench seats with backrest and grab handles
WindscreenSafety glass with windscreen wiper and washer

Speed25 km/h
Direction switchForward and reverse
Turning radius< 6 m

Overall length3,600 mm
Overall width1,210 mm
Height with roof1,920 mm
Wheelbase2,480 mm
Min. ground clearance100 mm

Weight with battery590 kg
Payload510 kg
Gradeability15 %
Range40 km
Tyre size20×9-12 with 12-inch aluminium rims
Seats6
Body colour optionsblack, white, dark blue, green, red

Use and equipment

Range 40 km.

Price: €11,990. You can view the vehicle at our yard in Markneukirchen, and we deliver across Germany with our own lorry. We also hire out electric vehicles for events, venues and businesses.

Standard equipment 15 items

  • Battery charge indicator
  • Plastic roof
  • Reversing alarm
  • Headlights with daytime running lights
  • LED lamps front and rear
  • Brake light
  • Indicators
  • Rear-view mirrors
  • Seat belts
  • Horn
  • Storage compartments
  • 1 USB socket
  • Cup holders
  • Lockable storage compartments at the front
  • 7-inch display

Options on request

  • Golf bag holder
  • Rain cover
  • Protective cover
  • Rear transport box kit in aluminium
  • Front bull bar

Manufacturer's figures, as at 07.09.2026 (JX4+2 series).

Terms & notes

plus freight/delivery on enquiry · prices incl. statutory VAT (19 % can be shown separately) · delivery ex works 08258 Markneukirchen · subject to price changes and prior sale · warranty 2 years private / 1 year commercial · fitted & ready to go · transport on enquiry
