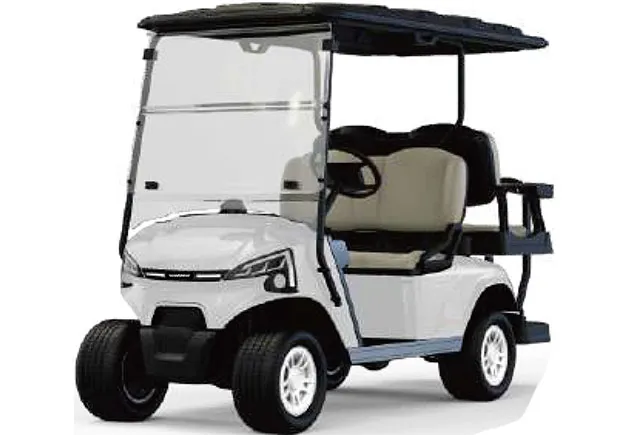

WSM JX2+2 electric vehicle – front side view, rear bench seat, roof, windscreen, white studio background

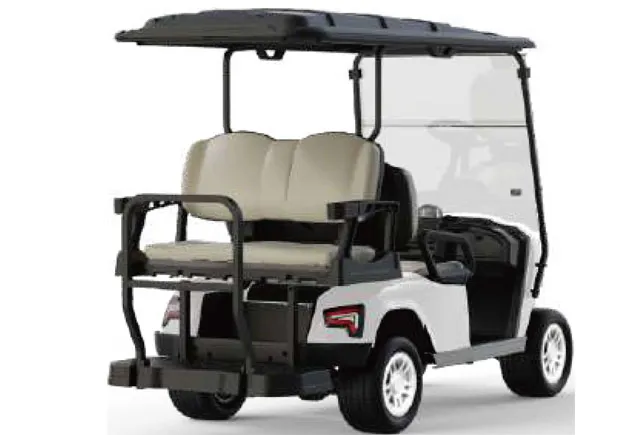

WSM JX2+2 electric vehicle – front side view, rear bench seat, roof, windscreen, white studio backgroundWSM JX2+2 electric vehicle – side view, 4-seater with roof and rear bench seat, white backgroundWSM JX2+2 electric vehicle – rear view at an angle from the left, rear bench seat with roof, white backgroundWSM JX2+2 electric vehicle – side view from the front left, sun roof, windscreen, rear bench seat, white background
Golf cart · Shuttles

JX2+2

€8,990

The JX2+2 is an electric vehicle from WSM with an AC motor and rear-wheel drive via a gear transmission with differential running in an oil bath. The steel chassis carries bumpers front and rear; at the front the wheels are independently suspended on double wishbones, at the rear leaf springs work with shock absorbers. The built-in charger shows the state of charge, analyses faults and immobilises the vehicle while charging. Standard: plastic roof, headlights with daytime running lights, LED lamps, indicators, display, USB socket and lockable storage compartments.

WSM JX2+2 electric vehicle (105 Ah) with 4 seats, long-life 105 Ah lithium batteries for longer running times and an AC motor

Features

  • 4 kW AC electric motor, 48 volts
  • Lithium battery 48 volts / 105 Ah
  • Integrated fast charger 48 V / 20 A with charge indicator and immobiliser
  • Steel chassis with front and rear bumpers
  • Independent double-wishbone front suspension, leaf springs at the rear
  • Hydraulic dual-circuit brakes, discs at the front, drums at the rear, foot-operated parking brake
  • 7-inch display, USB socket, two lockable storage compartments
  • Top speed 25 km/h
Range
50 km
Speed
25 km/h
Unladen weight
490 kg
Data sheet (PDF)
Enquire now

Matching accessories

1 item fit the JX2+2.

Prices incl. 19 % VAT, plus freight. Not sure which attachment fits? Just ask us — we'll tell you what makes sense on your machine.

Technical data

Engine4 kW AC electric motor, 48 volt
Control unitMarxon 400A controller with diagnostic port for quick fault finding
TransmissionTough rear-wheel drive through a gearbox with differential, gear drive running in an oil bath
BatteriesLithium 48 volt, 105 AH
ChargerBuilt-in professional fast charger 48V 20A with charge indicator and fault analysis, automatic immobiliser while charging, 220 volt connection

FrameSturdy steel chassis with bumpers front and rear
BodyworkHard-wearing plastic
SteeringSelf-adjusting rack-and-pinion steering, permanently lubricated
Front suspensionIndependent suspension with double wishbones and shock absorbers
Rear suspensionLeaf springs and shock absorbers
BrakesHydraulic dual-circuit braking system, disc brakes at the front, drum brake at the rear, mechanical foot-operated parking brake
SeatsHigh-quality comfort bench seats with backrest and grab handles
WindscreenSafety glass with windscreen wiper and washer

Speed25 km/h
Direction switchForward and reverse
Turning radius< 3.5 m

Overall length2,800 mm
Overall width1,200 mm
Height with roof1,920 mm
Wheelbase1,670 mm
Min. ground clearance100 mm

Weight with battery490 kg
Payload340 kg
Gradeability20 %
Range50 km
Tyre size20×9-12 with 12-inch aluminium rims
Seats4
Body colour optionsblack, white, dark blue, green, red

Use and equipment

Range 50 km.

Price: €8,990. You can view the vehicle at our yard in Markneukirchen, and we deliver across Germany with our own lorry. We also hire out electric vehicles for events, sites and businesses.

Standard equipment 15 items

  • Battery charge indicator
  • Plastic roof
  • Reversing alarm
  • Headlights with daytime running lights
  • LED lamps front and rear
  • Brake light
  • Indicators
  • Rear-view mirrors
  • Horn
  • Storage compartments
  • 1 x USB socket
  • Cup holders
  • 2 lockable storage compartments
  • Opening bonnet
  • 7-inch display

Options on request

  • Golf bag holder
  • Rain cover
  • Protective cover
  • Rear transport box kit in aluminium
  • Front bull bar

Figures as stated by the manufacturer, as of 07.09.2026 (JX2+2 series).

Terms & notes

plus freight/delivery on enquiry · prices incl. statutory VAT (19 % can be shown separately) · delivery ex works 08258 Markneukirchen · subject to price changes and prior sale · warranty 2 years private / 1 year commercial · fitted & ready to go · transport on enquiry
